CONNECT E-Charging Station International

MAKE YOUR PARKING SPACE FIT FOR ELECTROMOBILITY

The integrated solution for parking and charging electric vehicles. An additional ticket is not required – and charging is just as easy as parking. The only vehicle identification required for this is a ticket or licence plate. Parking and charging fees can be paid as one single payment. Customers do not need an additional app or special parking subscription and can use all the payment options available in your parking facility.

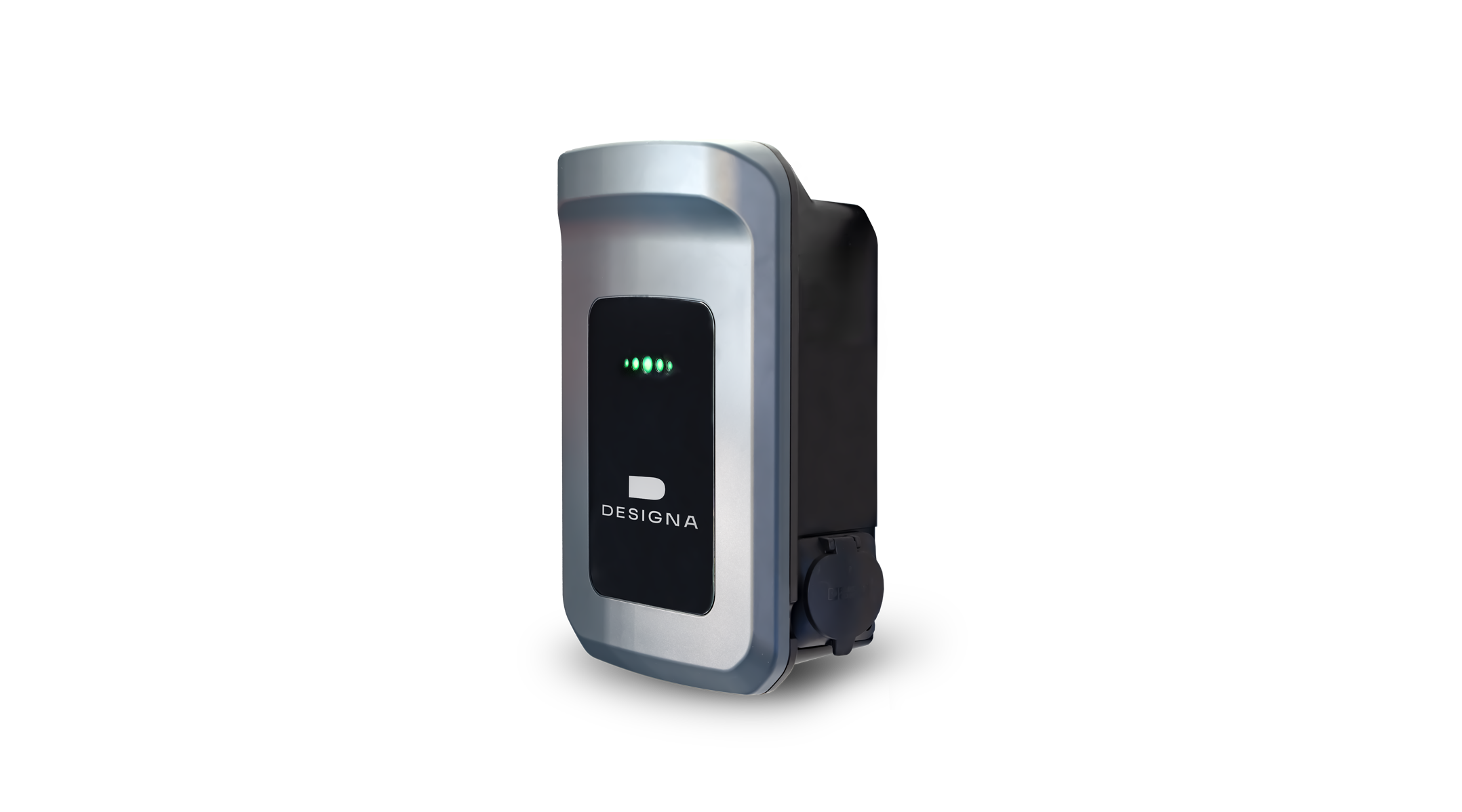

wallbox_designa_maerz2022 mit Logo

EIGENSCHAFTEN DESIGNA CONNECT E-CHARGING STATION:

  • 2 x 22 kW Typ 2
  • Charging station for indoor and outdoor usage
  • Two charging points per station
  • Integrated QR code/barcode scanner and RFID reader
  • Safe charging in mode 3 according to IEC 61851
  • Designed for wall mounting
  • Standing unit (optional)

Further Features of the Designa CONNECT E-Charging Station:

  • Vandalism protection: IK10
  • Implemented MIFARE- and QR-Code/Barcode-scanner
  • One FI and one LS installed per charging point; plus common overvoltage block
  • Connectivity: 3-way switch installed, optionally an LT modem with SIM card (M2M) can also be installed.
  • Multi-client capable
  • Ring buffer memory with > 20,000 measurement data records (storage of a data record for 10 years with 5 charging sessions per day)

HARDWARE

wallbox_designa_maerz2022 mit Logo
CONNECT E-CHARGING
DATASHEET
