Fast.
Reliable.

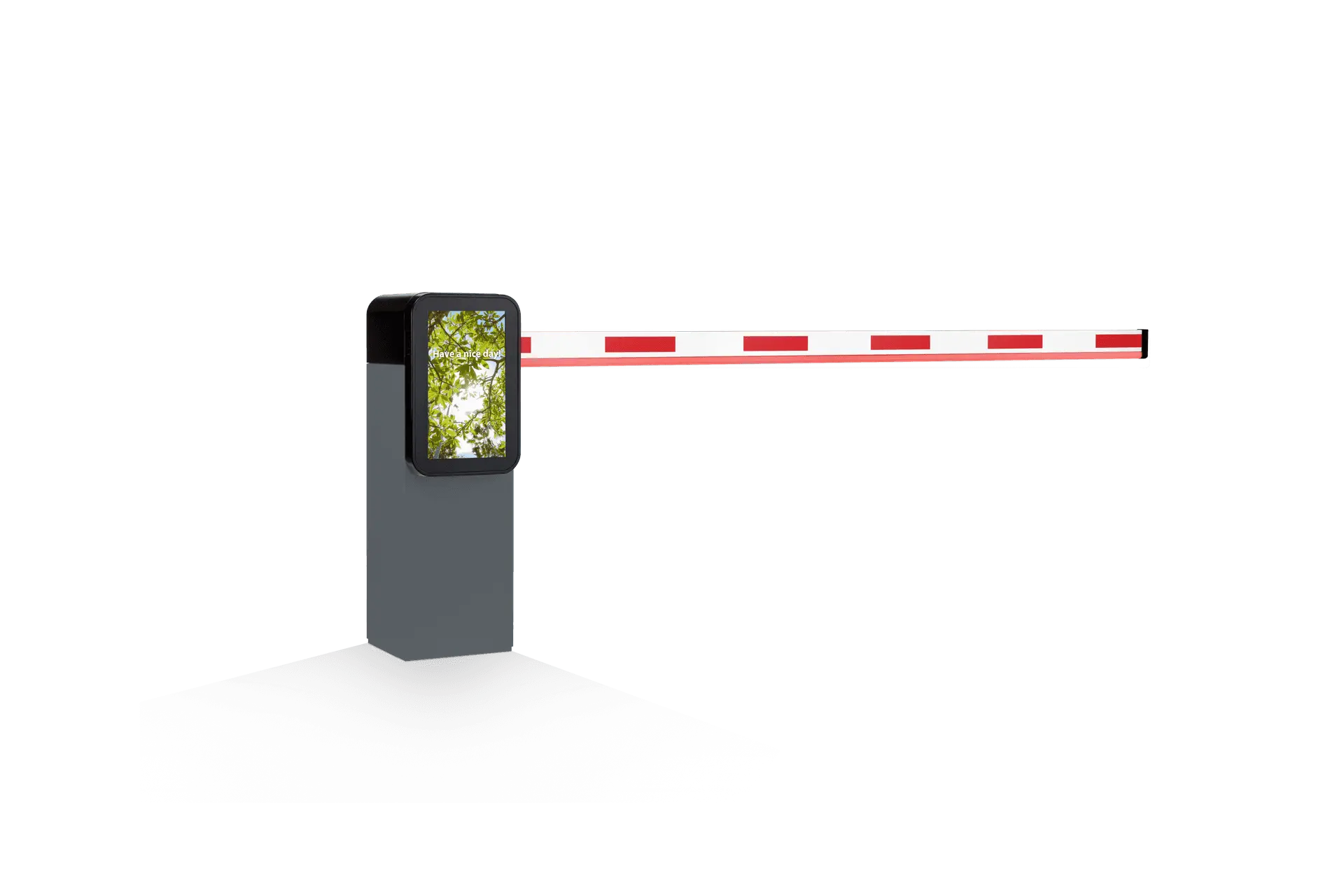

The Designa CONNECT GATE 600 parking barriers combine robust mechanics with advanced control technology. Compact housing, fast opening times, and intelligent sensor technology – for entrances from single car parks to large-scale facilities.
1.3 Sec. Opening Time
GATE 600 for boom widths up to 3.7 m, opens in 1.3 seconds by default – adjustable up to 2.5 seconds. GATE XL 600 for boom widths up to 6.3 m in 4 seconds.
Energy-Efficient Motor Technology
Innovative drive technology with a maximum power consumption of 90 W (GATE 600). The boost function automatically detects SUVs and vehicles with trailers.
Modular Configuration
Optional LPR camera integration, optional 18.5" TFT color display for digital content (tariffs, advertising, occupancy status), integrated dual-channel inductive loop detector.
CONNECT GATE
600
The standard parking barrier for lane widths up to 3.7 m – compact and energy-efficient.
Specifications
- Barrier arm lengths up to 3.7 m, standard arm 2.70 m
- Opening in 1.3 s, closing in 1.5 s – adjustable
- Brushless DC servo motor with impact reversal
- Boost function (ASB) for SUVs and trailers
- 18.5" TFT color display for digital content (optional)
- IP54, operating temperature -20 to +50 °C
- LPR camera directly integrable into the housing
- Barrier arm lengths up to 6.3 m (4.3 m / 5.3 m / 6.3 m)
- Opening and closing in 4 seconds, adjustable
- Brushless DC servo motor with impact reversal
- Boost function (ASB) for SUVs and trailers
- Swing support or rest post for barrier widths from 4 m
- 18.5" TFT color display (optional)
- LPR camera integrable up to max. 4 m barrier width
